BREADCRUMB WIRELESS NODE Rajant Condor BreadCrumb®

Introducing the Rajant Condor BreadCrumb, one of Rajant’s newest high-performance BreadCrumb radio nodes. The Condor addresses and solves potential device connectivity issues, effectively closing communication gaps among field equipment, vehicles, personnel, and unmanned ground vehicles (UGV).

ORDER NOW DOWNLOAD SPEC SHEET

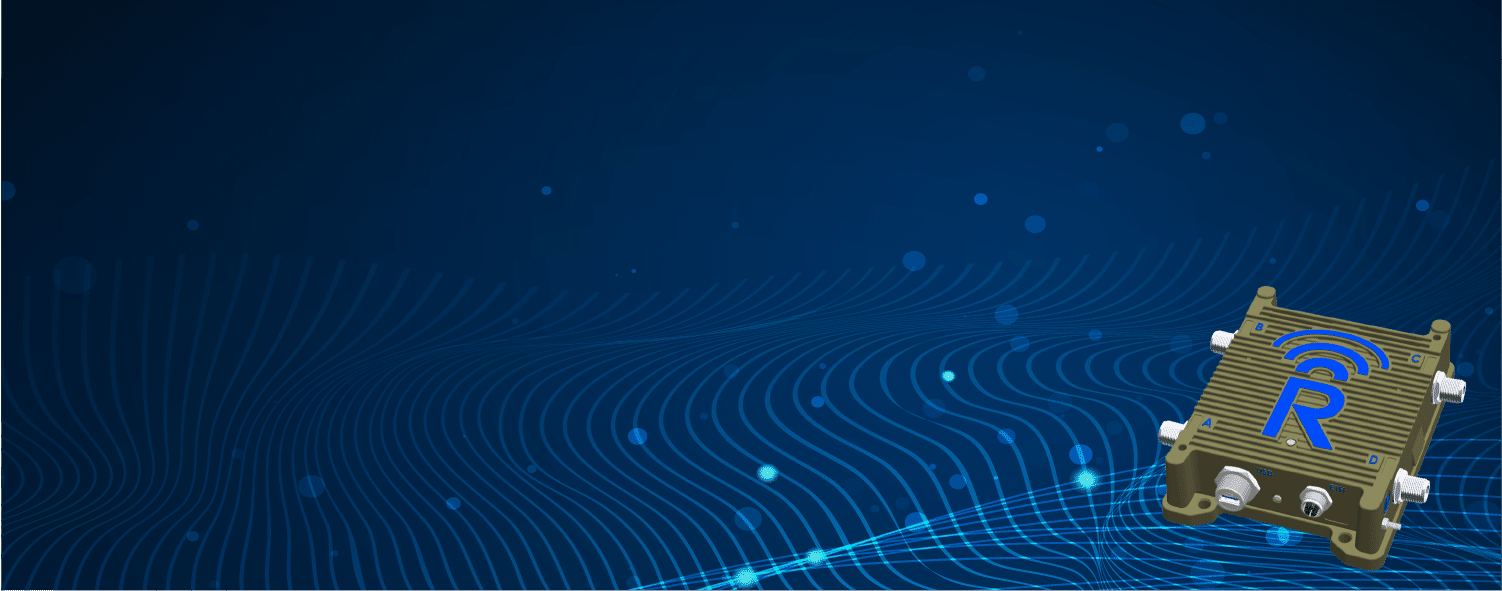

Rajant Condor BreadCrumb


The Rajant Condor BreadCrumb is Rajant’s new dual transceiver, military-grade, high-perfor- mance BreadCrumb platform. The Condor supports a maximum combined data rate of 1.7 Gbps and up to 6X enhanced throughput performance over existing BreadCrumbs. It offers two MIMO radio interfaces, high throughput, and enhanced security performance with up to 256-QAM and 80 MHz channels. The Condor HV1 series is an extremely rugged BreadCrumb in a compact form factor to enable a host of applications in challenging environments.

The Condor BreadCrumb works around obstructions, remedying challenges for LOS and NLOS, while offering extended-range M2M communication to reduce the overhead for hardware needed to cover and manage an area. Rajant BreadCrumbs work seamlessly with existing network infra- structure, allowing faster and cost-effective installation and management. Our Kinetic Mesh® coverage solves potential device connectivity issues. The Condor’s extended-range M2M commu- nication capability ensures that devices, vehicles, personnel, drones, and unmanned ground vehicles remain connected, eliminating communication gaps that could lead to inefficiencies or increased operational costs.

Key Features:

  • Rajant’s patented InstaMesh® wireless networking software enables the network to quickly adapt to rapidly-deployed and quickly (or constantly) moving network elements
  • Multiple concurrent transceivers for high levels of network reliability, redundancy and diversity, and fewer problems due to interference, congestion, and equipment outages
  • Up to 1.7 Gbps of physical layer data rate combined over two transceivers
  • Radio frequency – 2.2 GHz and 1.4 GHz
  • Antenna-port configurations with 2X2 MIMO (multiple-input, multiple-output), substantially increasing the capacity of transceivers
  • Support for several strong cryptographic options used for data and MAC-address encryption and per-hop, per-packet authentication
  • Rugged and environmentally sealed enclosures
  • High bandwidth for data, voice, and video applications
  • Scalability to hundreds of mobile, high-bandwidth nodes
  • Integrated 802.11ac Wi-Fi Access Point and client mode service for compatibility with millions of commercial off-the-shelf Wi-Fi client and access point devices such as laptops, tablets, smartphones, IP cameras, sensors, and other IP devices
  • Self-forming and self-healing operation for fast and easy deployments
  • Reliable and fast off-loading to Ethernet via multiple, simultaneous bridge-mode links through the Automatic Protocol Tunneling (APT) feature

Download the Condor BreadCrumb Spec Sheet to Learn More

Request More Information on Condor

We’ll show you how you can utilize Condor BreadCrumbs to build a fully mobile, mission-critical mesh infrastructure with high throughput and enhanced security performance.
Submit your information and question(s) on Condor below and a representative will follow up with additional details.
