Accessories Rajant VHDC-Series: DC/DC Converters

The Rajant VHDC-series consists of passive Power over Ethernet (PoE) compatible DC/DC converters designed for high reliability in military and industrial applications.

VIEW PRODUCTS DOWNLOAD SPEC SHEET

These converters include:

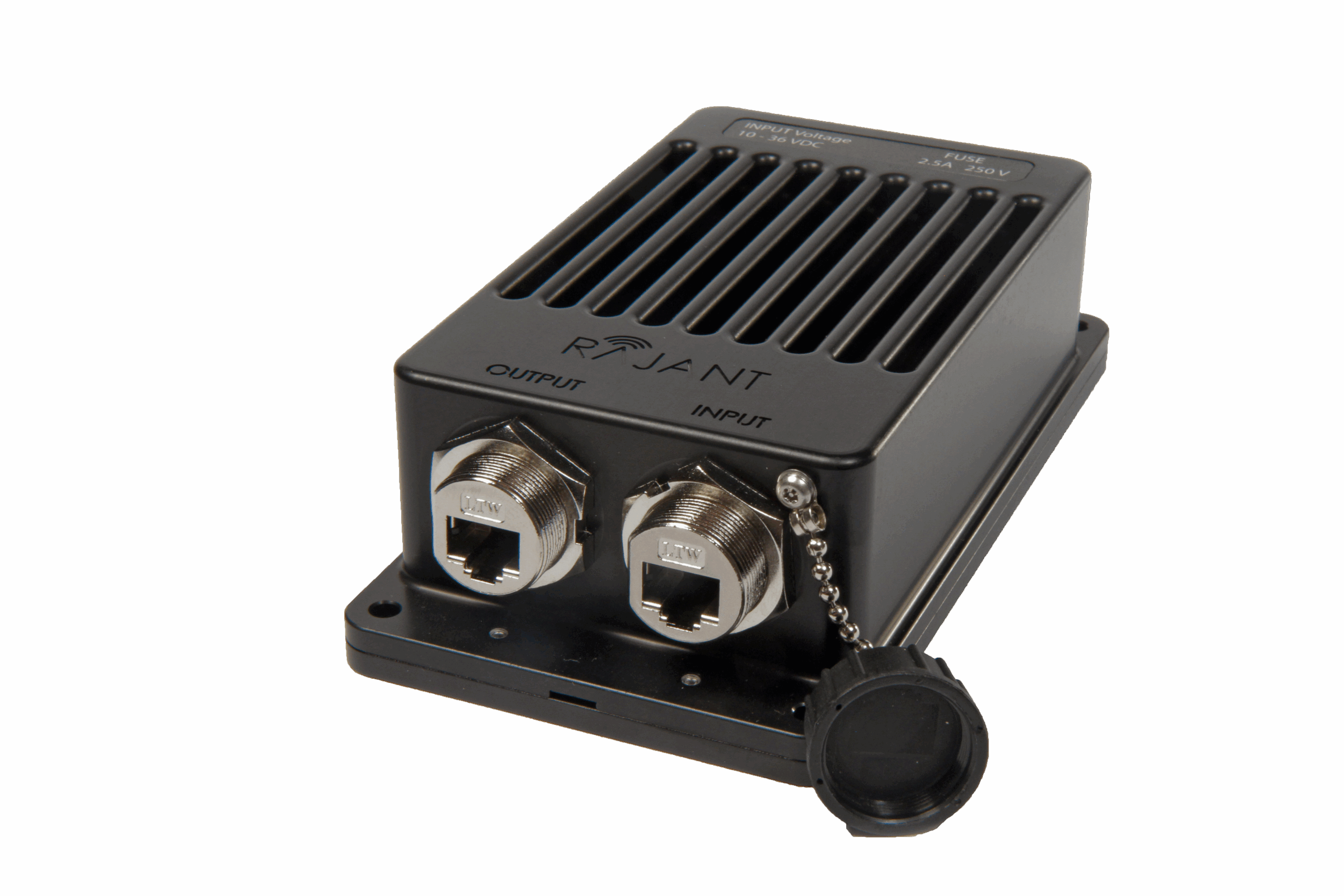

rajant VHDC-24V-50W

VHDC-24V-50W

24V Output
2.08 Max. Output Current
Sealed (dust-tight, waterproof)

rajant VHDC-24V-50W-LC

VHDC-24V-50W-LC

24V Output
2.08 Max. Output Current
Non-sealed

rajant VHDC-48V-50W

VHDC-48V-50W

48V Output
1.04 Max. Output Current
Sealed (dust-tight, waterproof)

rajant VHDC-GHBe

VHDC-24V-50W-GbE

24V Output
2.08 Max. Output Current
Sealed

Featuring ruggedized enclosures with over-temperature, over-voltage, over-current, and short-circuit protection, the VHDC-series provides:

  • Manufacturer replaceable input and user replaceable output fuses on VHDC-24V-50W and VHDC-48V-50W, and user replaceable input and output fuses on the VHDC-24V-50W-LC to protect the devices from over-current conditions.
  • Wide 10–36 V input range, which is useful in stabilizing the power from input sources such as vehicle batteries.
  • High power 24 V or 48 V, 50 W isolated and regulated output.
  • High efficiency (83% typical).
  • VHDC-24V-50W and VHDC-48V-50W ONLY: Designed to meet the IP67 (6: Dust-tight, 7: Waterproof) ingress protection specifications, making them ideal for outdoor applications.

Download the VHDC-Series Spec Sheet to Learn More

dcdc56v

DC/DC 56V PoE Injector

56VDC Output
1.25A Max. Output Current

The DC/DC-series features:

  • High-power, passive PoE
  • Remotely power equipment through Category 5 or betterEthernet cable up to 30 m length
  • Built-in Ethernet surge protection and 1000 Mbps Ethernet data speeds
  • High bandwidth for data, voice, and video applications
  • Wide temperature range operation and compact size—floor, desktop, wall mount, and DIN rail mount

Download the DC/DC-Series Spec Sheet to Learn More
